ODOO 9 PRESTASHOP CONNECTOR

After Installation of Odoo 9 Prestashop Module

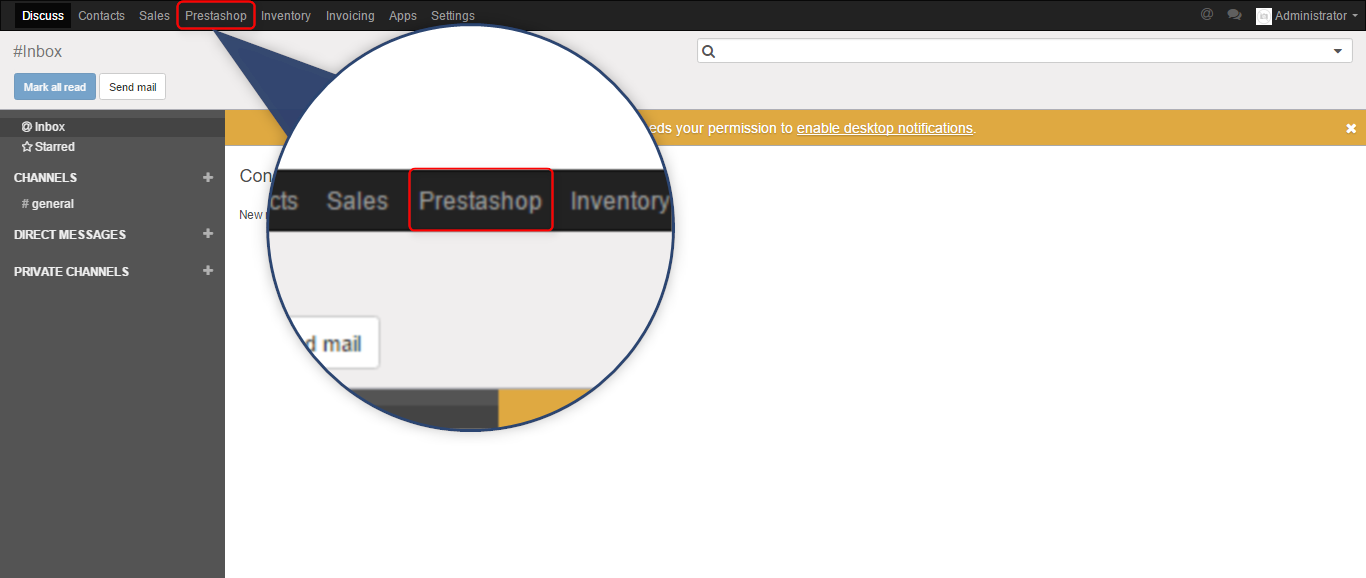

After you install the Odoo Prestashop connector you will be able to see the Prestashop Menu created in Odoo version 9 as showed in the below image

Dashboards

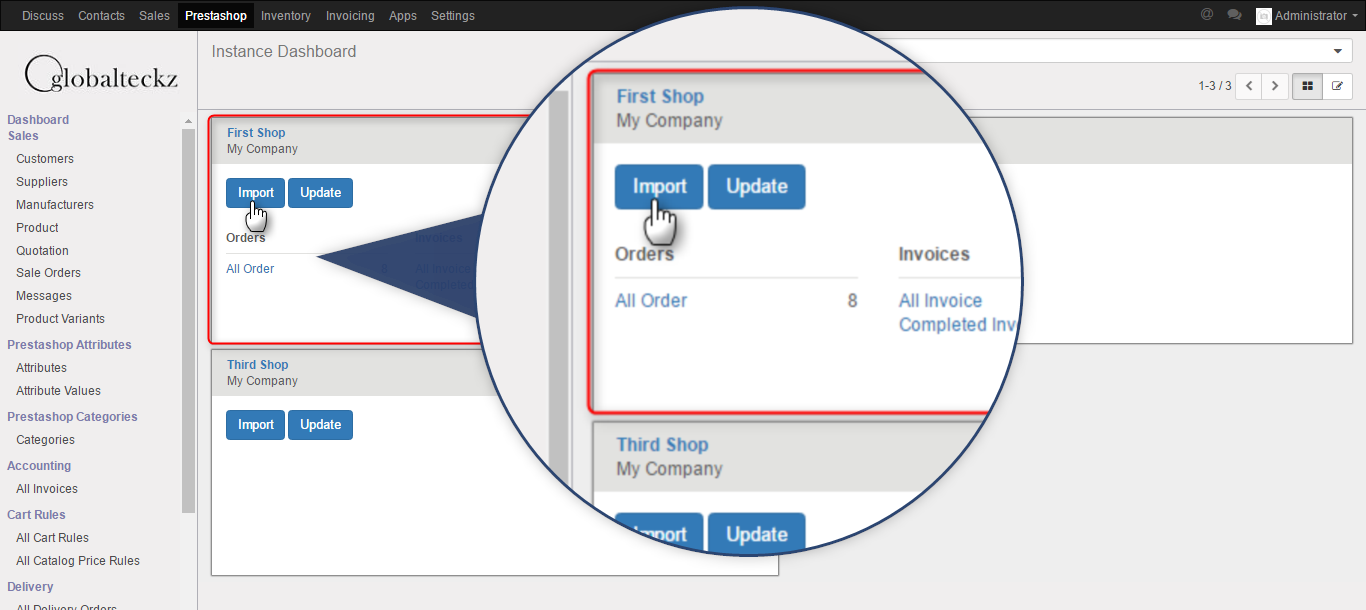

Here you can see the list of Shops on the Dashboards we have simplified everything in this connector i.e.: you can import and update everything from your Dashboards only.

LIST OF IMPORT FUNCTIONS

Once you click on the Import function – a pop up will open up so that you can perform different operations from your Prestashop into Odoo ERP software

Here you can see in the below image we have list of functions that can be performed from Odoo ERP software

1. Import product attributes
2. Import of categories
3. Import of customers
4. Importing suppliers
5. Importing manufacturers
6. Import of Addresses
7. Import of all your products from Prestashop into Odoo
8. Importing of Inventory
9. Importing of shipping carriers
10. Importing of all your Prestashop Orders
11. Import of messages from the customers into Odoo
12. Import of cart rules
13. Import of catalog rules

You can import everything in one go by check boxing the respective operations – once you click on “run button” everything will be imported into Odoo version 9
Further you can also select multiple shops for the operations in one go

The above were high level features on Dashboards and importing functions – now let’s go into the steps of Prestashop Odoo Connector

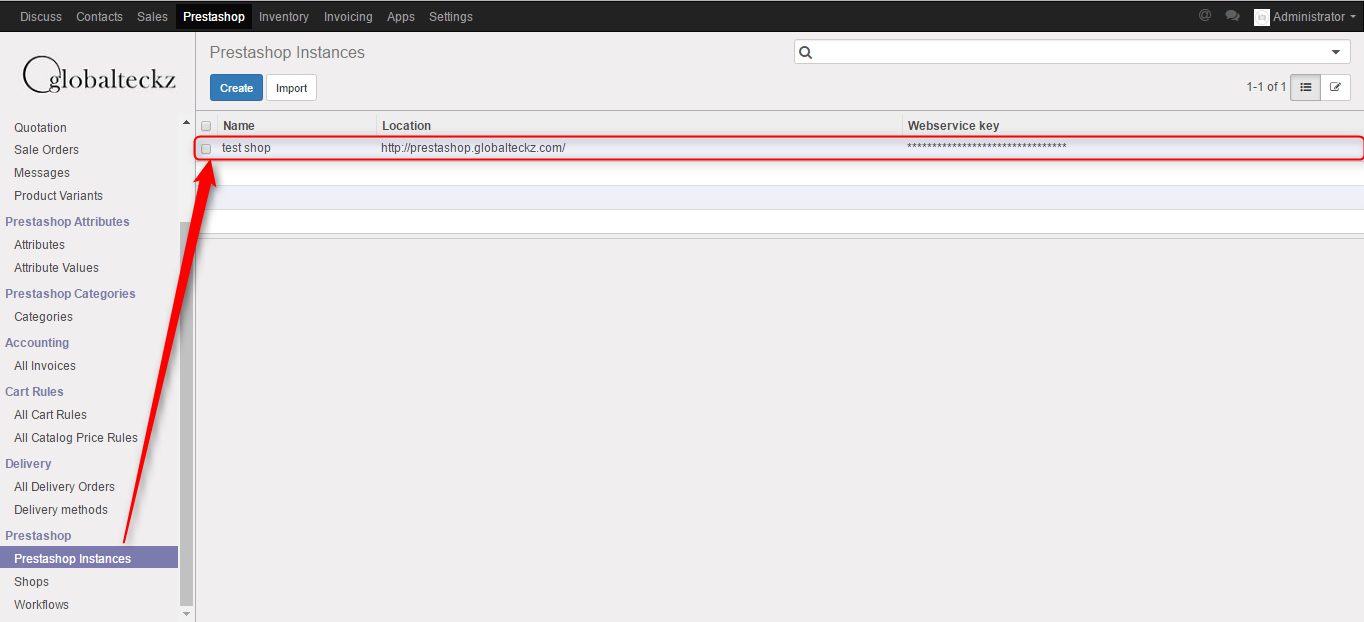

Creating of instance : Click on the Prestashop menu and below you will be able to see Prestashop Instances and Prestashop shop – The first step is to create the Prestashop instance

You can create Prestashop instance in Odoo by clicking on Create button

After Opening the Prestashop instance you can fill up the form to create a new Prestashop Instance

1. Name of the instance (You can provide name of your instance example : Tony’s Shop)
2. Company Name (Fill your company name )
3. Version (You can select the version of your current Prestashop website)

Account Credentials –

4. Location – You can see your location in the Prestashop configuration information > Store Location
5. Web service Keys – In your Prestashop website – advance parameters there is an option
called Web service then you need to create/generate web service keys and provide permission to it

Main Configuration –

6. Warehouse (By default you can use my company warehouse )
7. Shipping Product (This will be created automatically)

You can click on Create Prestashop shop to know the list of Prestashop shops created in Odoo

You can directly check out the list of Prestashop shops created in Odoo from the menu “Prestashop – Shops”

Here is one of the Prestashop detailing once you click on the shop

Shipping and Handling management from Odoo – here you can manage or assign the shipment as per your requirements

Gift Wrapping fee – You can manage gift-wrapping fees from Odoo itself

Guest customer management helps you to configure guest customers on your Prestashop website

You can also configure the bank and sales journal

Order workflow helps you to define your own workflows for order management

As you can see in the below image your store/shop consist of last import date of Product, inventory, order & Messages. You can further edit the same if required for the next import. Or can run the schedulers for automatic import of your attributes, inventory, orders, messages etc

From the Dashboard itself you can initiate the import of everything – To start your initial import you can click on the Prestashop Dashboard in Odoo and there you can see the import button – You can import everything at one go by check boxing the operations you need to perform in Odoo from Prestashop – or if you need automatically this can be done via schedulers which can be define for every minute, or every hour and so on. . . .
We will detail each and every functions of our Odoo Prestashop connector
Import Product Attributes : You can click on the check box for Import product Attributes and then click on run Button – make sure for the first time import just initiate with the attributes part. You can click on the run button.

Here you can see the list of attributes imported from Prestashop into Odoo

We can check the details of each and every attributes as required

Below is the list of attributes values imported from Prestashop into Odoo

IMPORT CATEGORIES : To import the categories you simply check box the import categories function and click on run this will import all your Prestashop categories in Odoo

Here you can see the list of categories imported in Odoo

You can also check on each and every respective category in details

IMPORT CUSTOMERS: To import the customer you simply check box the import customers function and click on run this will import all your Prestashop Customer in Odoo

Here you can see the list of Customers imported in Odoo

You can also check on each and every respective Customer in details

IMPORT SUPPLIERS AND MANUFACTURERS
To import the Suppliers and Manufacturers you simply check box the import suppliers & Manufacturer function and click on run this will import all your Prestashop suppliers & Manufacturer in Odoo
